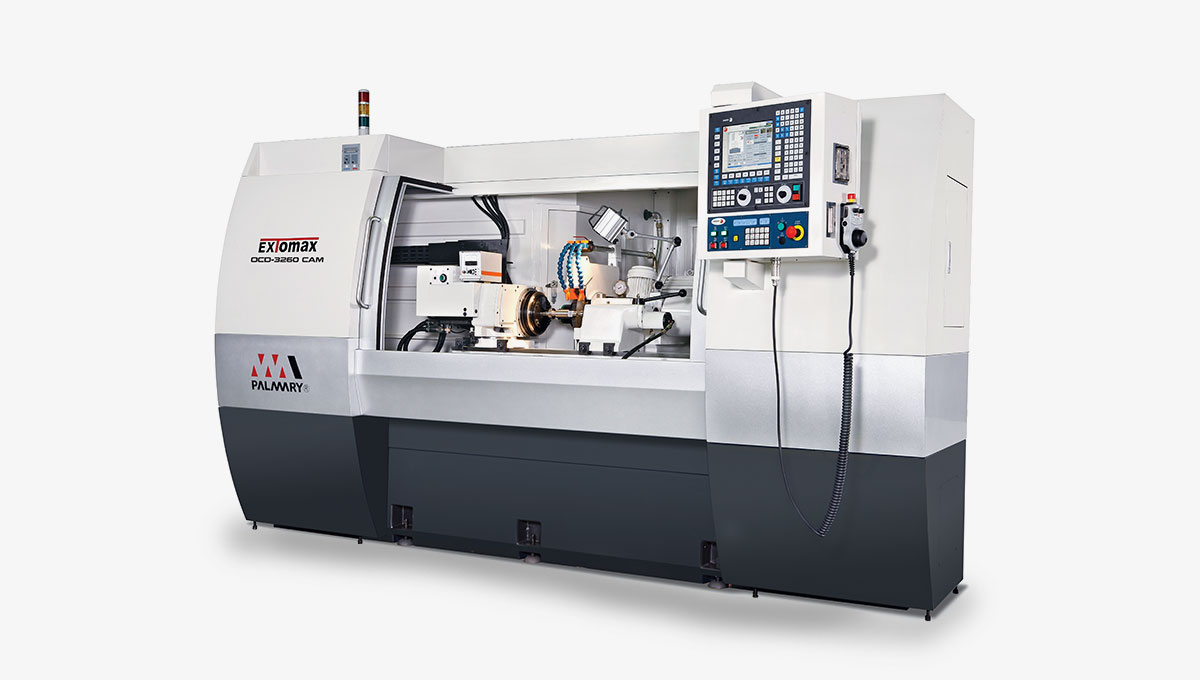

MÁY MÀI TRỤC CAM PALMARY OCD-3260CAM
Thông tin chi tiết
|
Máy Mài Cam CNC Palmary |
Model OCD-3260CAM |
|---|---|
|
Capacity |
|
|
Swing over table |
Ø320 mm |
|
Distance between centers |
600 mm |
|
Max. grinding diameter |
Ø300 mm |
|
Max. load held between centers |
150 kg |
|
Wheel |
|
|
O.D. x width x I.D. |
Ø355 x 50 x Ø127mm |
|
Linear velocity |
45 M/s |
|
Speed |
2245 r.p.m. (2420 r.p.m.) |
|
Wheelhead |
|
|
Rapid feed rate |
10 M/min |
|
Min. input increment |
0.001 mm (0.0001 mm) |
|
Table |
|
|
Rapid feed rate |
10 M/min |
|
Min. input increment |
0.001 mm (0.0001 mm) |
|
Swiveling angle |
0° ~ 12° |
|
Workhead |
|
|
Center |
MT. 4 |
|
Speed |
0~300 r.p.m. |
|
Cam grinding speed |
0~30 r.p.m. |
|
Max. load of spindle (tool holder included) |
35 kg (max. length 150 mm) |
|
Tailstock |
|
|
Center |
MT. 4 |
|
Tailstock stroke |
25 mm |
|
Controller |
FANUC/FAGOR |
|
Motor |
|
|
Wheel spindle |
5.5 kW |
|
Work spindle |
2.5 kW |
|
Wheelhead feed |
3.6 kW |
|
Table feed |
3.6 kW |
|
Hydraulic pump |
0.75 kW |
|
Wheel spindle lubricant |
0.18 kW |
|
Coolant pump |
0.18 kW |
|
Tank |
|
|
Lubrication oil tank |
18 L |
|
Hydraulic (for accessory) |
18 L |
|
Machine weight |
4250 kg |
